Auto Fulfillment Kraft Bubble Bag Bubble Mailer Bag Bagging Machine

This product is a bubble mailer packaging machine for e-commerce shipping. It can automatically connect to the e-commerce order WMS system based on customer needs, enabling a complete workflow including product barcode scanning, automatic picking of bubble mailers, automatic bag opening, automatic label printing and applying, and automatic sealing. It provides an overall solution for courier packaging. Only one operator is required, and the machine can achieve a speed of up to 900 pieces per hour.

Auto Fulfillment Kraft Bubble Bag Bubble Mailer Bag Bagging Machine


Machine Description



This product is a bubble mailer packaging machine for e-commerce shipping. It can automatically connect to the e-commerce order WMS system based on customer needs, enabling a complete workflow including product barcode scanning, automatic picking of bubble mailers, automatic bag opening, automatic label printing and applying, and automatic sealing. It provides an overall solution for courier packaging. Only one operator is required, and the machine can achieve a speed of up to 900 pieces per hour.

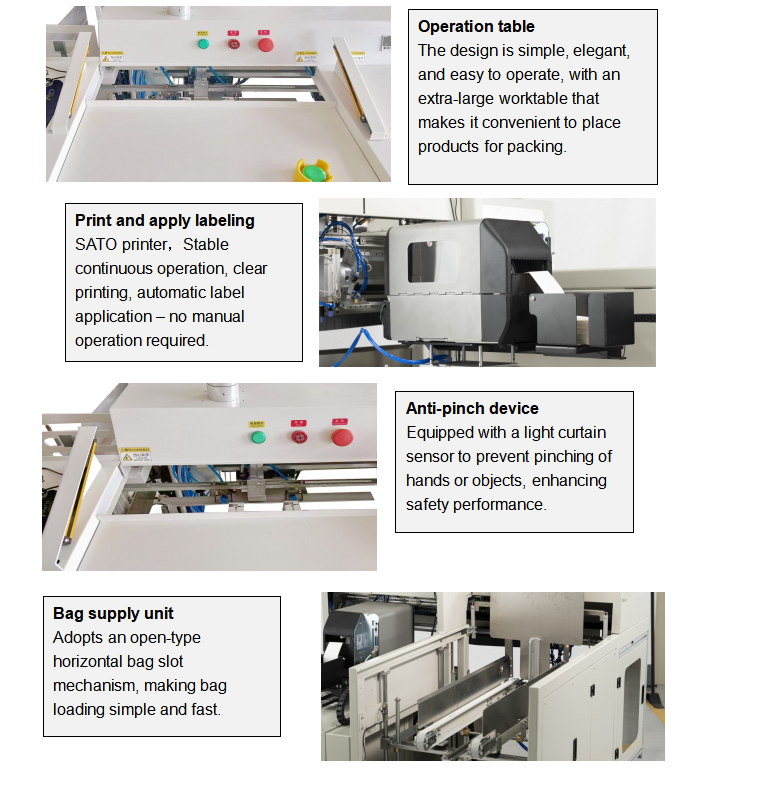

Integrated process-- Combines product scanning, automatic bag picking and opening/shaping, automatic label printing and applying, and automatic sealing into one seamless workflow.



System integration--- Can directly interface with various WMS systems.



Labor saving-- Reduces manual work; one machine can replace 2~3 operators.



Strong sealing-- Adopts a unique heat sealing design tailored to bubble mailer materials, ensuring firm and neat seals.



Error-free--  After product scanning, label information is automatically generated by the system, then printed and applied  no wrong or missed labels.



High efficiency-- Requires only one operator, up to 900 pieces per hour.



High safety --Pinch/proof, burn /proof, and fool/ proof design for safe operation.


Specification:

Model

INAM-DS01

Bag length

190-600mm

Bag width

150-550mm

Max bag opening width

180mm

Shipping label size

W 40~100mm

L 50~180mm

Max package weight

2Kg

Packaging speed

up to 900bag/Hour

Packaging materials

Bubble bag

Power

220V/110V,50/60Hz,3.0KW

                          Communication

Internet ,USB ,RS485

Air comsuption

Air pressure: 0.4Mpa~0.6Mpa; Comsuption: 400L/min

Machine size

(L)1950×(W)1355×(H)1330 mm

Machine weight

350Kg
